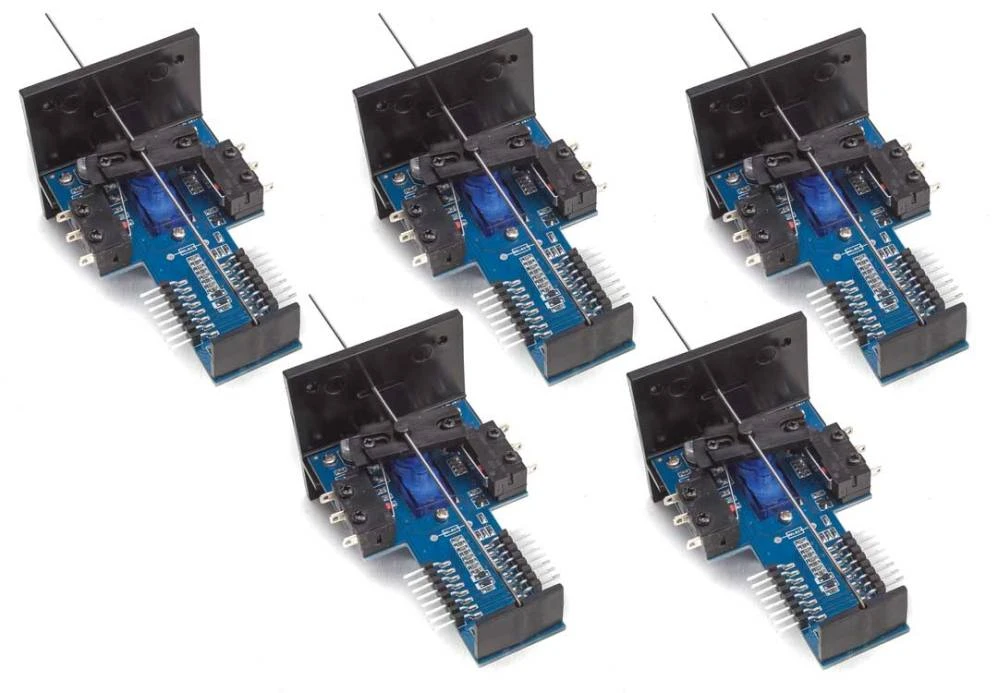

Walthers Walthers Layout Control System — Vertical Mount Switch Machine 5-Pack

The Walthers Layout Control System Switch Machine features:
– Fully assembled, servo-based unit with approximately one second throw speed
– A built-in DCC accessory decoder
– Two built-in 5A switches to power frogs, signals and more
– Self-locking mechanism for reliable positioning – servo power turns off when motion is complete
– Adjustable throw & tension from 1/32″ to 1/2″ (1mm to 12mm) for turnouts in any scale from Z to O
– Factory-assembled with output rod in centered position for fast & easy under-benchwork mounting
– Wire in minutes with included cables
– Outputs for both single or bi-color LEDs
– Connecting cable included – easily expanded with Extension Cable (#942-113, sold separately)

Options include:
– Adjustable throw speed from .5 to 5 seconds
– Remote lock input for dispatcher to enable/disable local turnout control with CTC
– Single/Alternate bi-color LED modes
– Polarity route control for use of DPDT switch in place of fascia control
– Complete instructions with mounting template – use with Walthers Layout Control System Turnout Drill Set (#942-140, sold separately)

Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a built-in DCC accessory decoder is included). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
