NCE Digital Command Control Starter Sets – 10 Amps For O/G Scale — PH-PRO-R Powerhouse Pro W/916

The PH10-R is a radio equipped system. It is designed to eliminate the need for a tethered throttle. All features of the Pro Cab are usable while in radio mode. Up to 60 additional radio and tethered cabs can be used simultaneously. The PH-10 has all the same features as our Power Pro 5 Amp system described previously, but with a whopping 10 Amps of power for O-Scale and Large Scale (G) layouts. Requires an additional 18V, 10-12 Amp power supply such as the Brutus. The PH10 can use any power supply up to 22v AC or 32v DC, just make sure you have a circuit breaker!

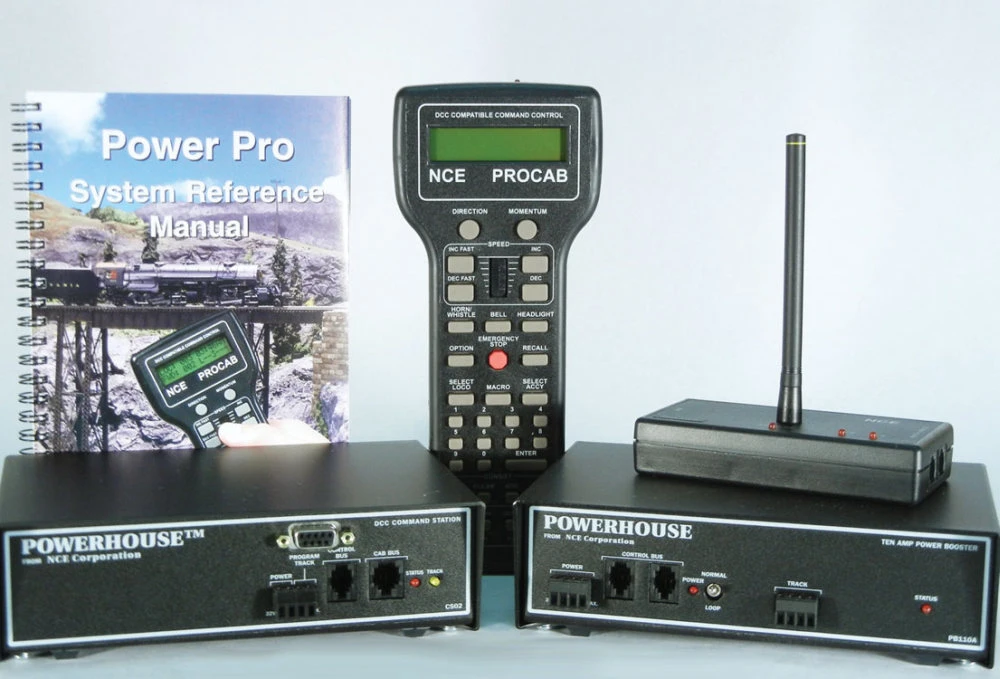

Contents of the PH10R System:
Powerhouse System Box (CS02) with 4 pin Power/Program Track Plug
18v 1amp DC Power Supply for CS02
Powerhouse 10 amp Booster box (PB110a) with 4 pin Power plug and 4 pin track plug
Pro Cab Throttle
Coiled cable for cab – 6 wire RJ12 cab bus cable
Seven foot flat cable for cab – 6 wire RJ12 cab bus cable
Twelve inch flat cable – 4 wire RJ-H control bus cable
UTP cab bus panel
RB02 Radio Base Station
Radio Antenna for RB02
Radio Addendum for Manual
D408 4 amp Locomotive Decoder
Power Pro system reference manual
